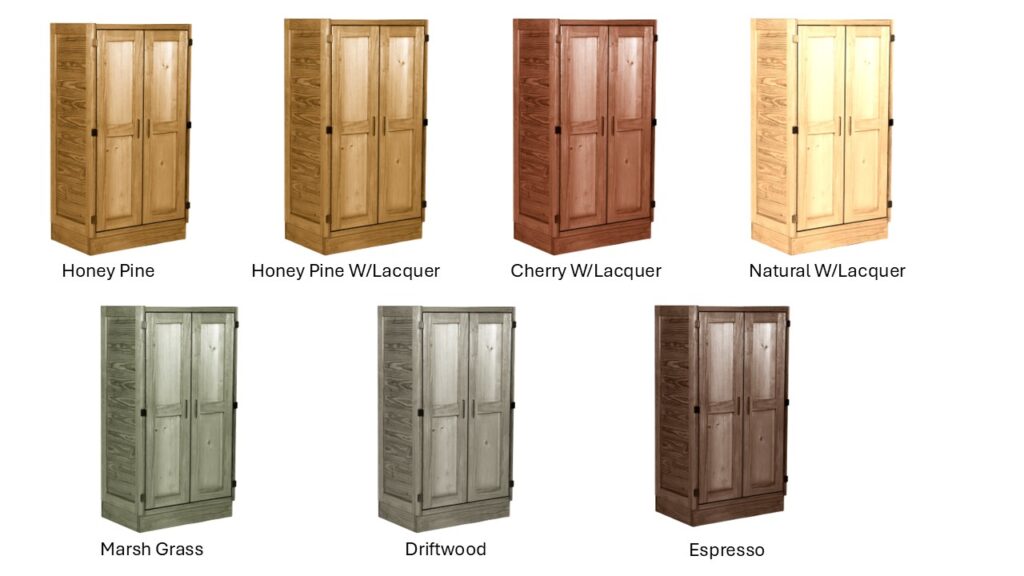

Size:36″Lx24″Dx67″H Weight:198 lbs
Specs:
Specifications/Construction
General Description
Solid kiln dried wood construction. Southern Yellow Pine. Oil based stain fi nish.
Construction of Panels
2-ply – fi rst ply 1″ x 4″ and 1″ x 6″ boards, outer frame 1″ x 4″s
Panels are glued and nailed with 1 1⁄4″ nails then clamped in hydraulic presses. The hydraulic press-
es generate 90,000 pounds of pressure, bonding the plys of the panels together with 140 – 180 psi.
Panels that are not put together with hydraulic presses and the above specifi cations are not accept-
able.
Construction of Top Panel
2-ply – top ply 1″ x 4″ and 1″ x 6″ boards. Bottom ply 1″ x 4″s
Top panels are glued and nailed, then clamped in hydraulic presses. The hydraulic presses generate
90,000 pounds of pressure, bonding the plys of the panels together with 140 – 180 psi. Panels that
are not put together with hydraulic presses and the above specifi cations are not acceptable.
Page 2
Construction of door panels
Door panels are glued and nailed with 1 1⁄4″ staples, then clamped in hydraulic presses. The
hydraulic presses generate 90,000 pounds of pressure, bonding the plys of the panels together
with 140 – 180 psi. Panels that are not put together with hydraulic presses and the above spec-
ifi cations are not acceptable.
Final assembly
1⁄4” Meranti plywood backs are glued and stapled to side panels with 1 3⁄4″ full crown staples.
Top panel glued and screwed to sides with #8 x 2 1⁄2″ wood screws. Base screwed to sides with
#9 x 2 1⁄2″ wood screws. Each door hung with three 279-degree hinges with #6 x 5/8″ screws.
One double magnet for each door. Solid wood hanging rod – removable.
Door Pulls
Routed on CNC router.
No door knobs acceptable, handles must be routed not cut out.
